Orca Split Refrigeration Units

Orca Split Refrigeration Systems

Split Refrigeration Units

Rated 5.00 out of 5 based on 1 customer rating

(1 customer review)

Produced in conformity with cold and freezer room conditions.It conforms to European Union norms and manufactured with CE marking.

Environmentally Friendly

Certified Products

Energy Saving

Category: Refrigeration Systems Tags: Orca, Refrigeration, Split, Systems, Units

General Specifications

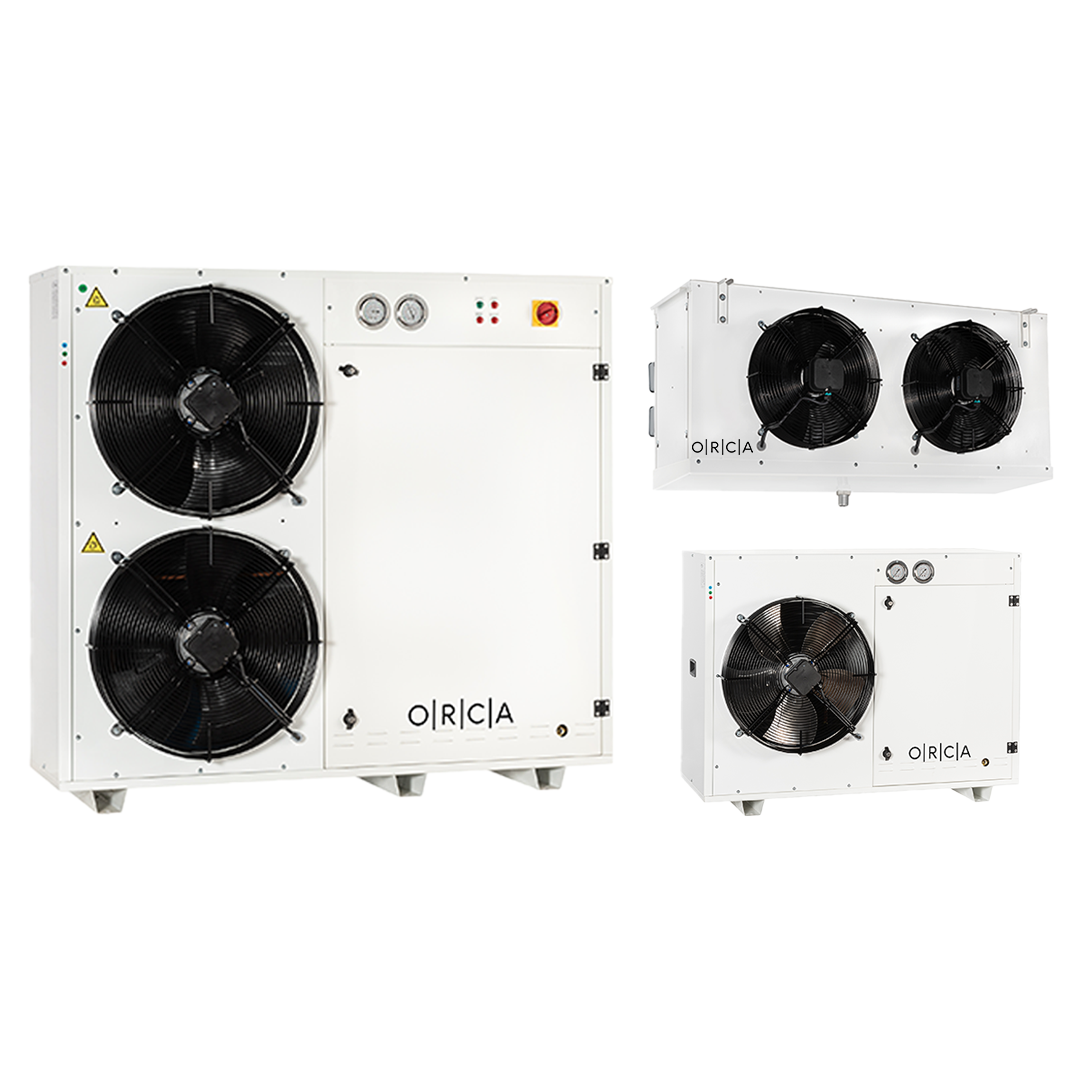

Split Refrigeration Units ;

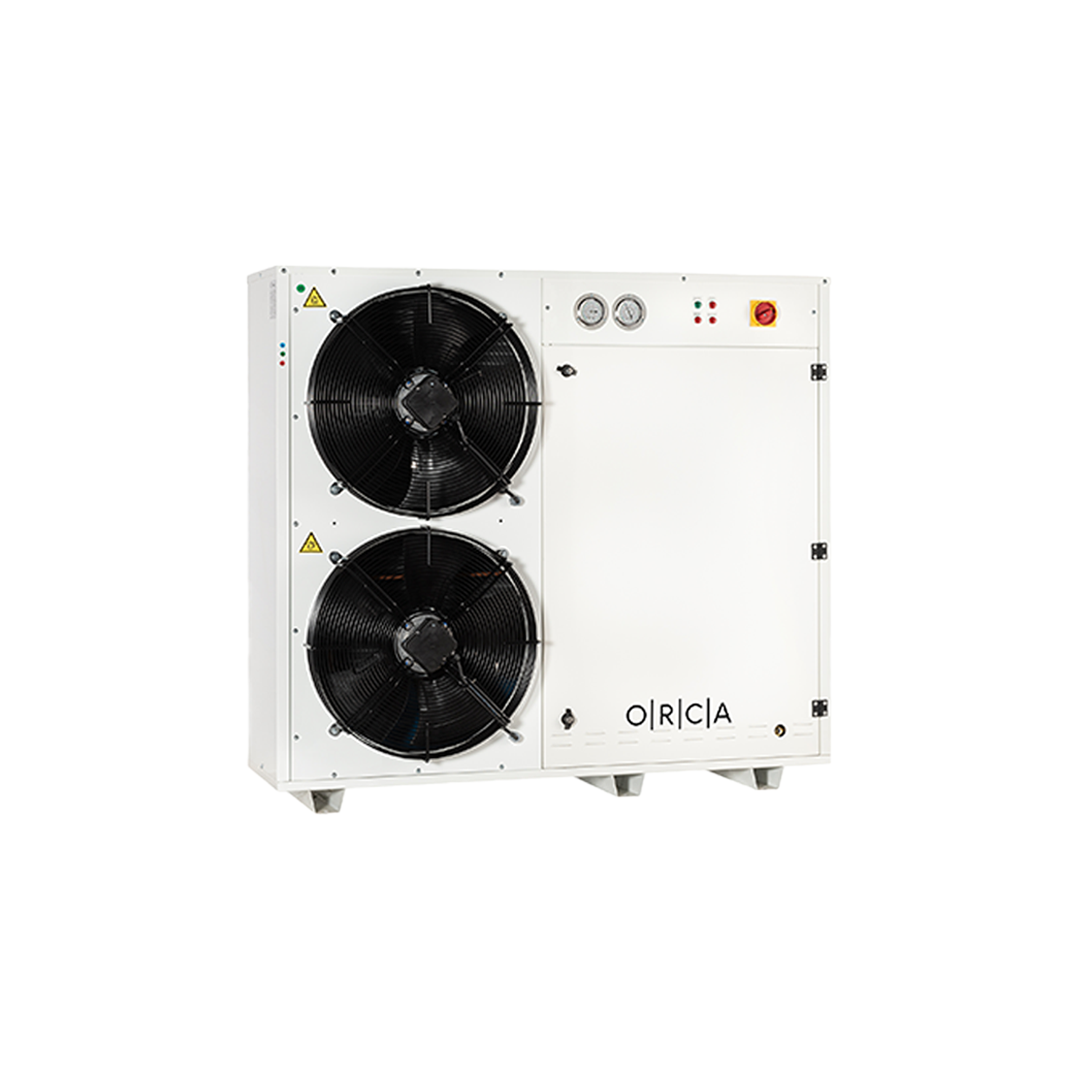

With semi-hermetic and scroll compressor and air cooled condenser.
It has remote control panel.
It has robust housing according to ambient conditions.
It is delivered with positive pressure by pumping nitrogen to inside and outside unit.
All equipments are delivered together with control instruments as being ready to assembly.
It has electrostatic painted galvanized steel cabinet.

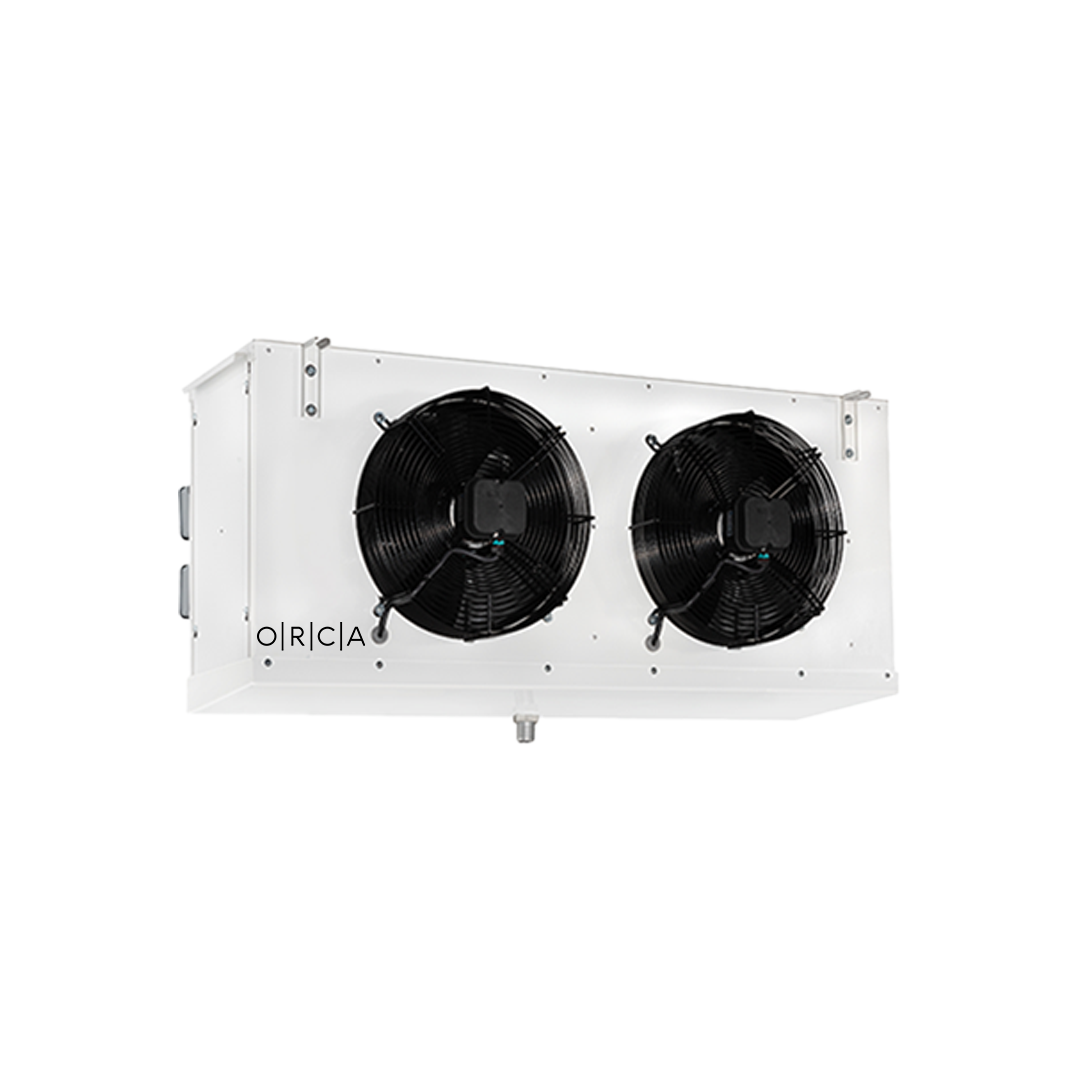

High efficiency evaporator design according to unit capacity.

Technical Specifications

Split Refrigeration Units ;

Split Refrigeration Unit Connection Equipments:

* It can differ according to unit model

Phase protection relay (High/Low)
Thermal / Magnetic circuit breaker
Contactor (in three-phase models)
Crankcase heater
Copper tube aluminium fin condenser
Liquid receiver, Suction line accumulator
Dryer
Sight glass
Liquid flow control solenoid
Service / Maintenance valve (on the liquid line)
Pressure switch (Low/ High)
Gas charge valve
Check valve
Oil filter, Oil separator
Sound Insulation
Electronic fan speed controller (in frost series)

Split Refrigeration Units Cold Series ;

Hermetic R404A ( Suitable for working with R448A, R449A and R452A. )

(Evaporating Temperature -5 °C, Condensation Temperature +40 °C)

TYPE	WATT Q	HP P	KW TP	C.O.P	COMP. TYPE	M³ V	POWER SUPPLY	EVAP. TYPE	DOCUMENTS
OCST/0140-HZ	1.706	0,75	0,74	2,29	CAJ 9480 Z	01/14	220 V/50 Hz	ORE 30.11.6
OCST/0205-HZ	2.560	1,00+	1,05	2,43	CAJ 9513 Z	15/24	220 V/50 Hz	ORE 30.12.6
OCST/0245-HZ	3.015	1,20	1,20	2,51	CAJ 4517 Z	25/30	220 V/50 Hz	ORE 30.21.6
OCST/0325-HZ	3.984	1,50	1,62	2,45	CAJ 4519 Z	31/41	220 V/50 Hz	ORE 30.22.6
OCST/0385-HZ	4.353	2,00	1,86	2,34	TFH 4524 Z	42/46	380 V/50 Hz	ORE 30.22.6
OCST/0500-HZ	5.574	2,50	2,32	2,40	TFH 4531 Z	47,61	380 V/50 Hz	ORE 30.31.6
OCST/0670-HZ	7.157	3,00	3,11	2,30	TFH 4540 Z	62/93	380 V/50 Hz	ORE 30.32.6
OCST/0740-HZ	9.180	4,50	3,70	2,48	TAG 4553 Z	94/121	380 V/50 Hz	ORE 30.42.6
OCST/0890-HZ	10.261	5,00	4,15	2,47	TAG 4561 Z	122/138	380 V/50 Hz	ORE 30.42.6
OCST/1065-HZ	11.931	6,00	4,57	2,61	TAG 4568 Z	139/183	380 V/50 Hz	ORE 40.22.6
OCST/1165-HZ	12.861	7,00	5,20	2,47	TAG 4573 Z	184/208	380 V/50 Hz	ORE 40.22.6
OCST/1250-HZ	13.940	8,00	5,87	2,38	TAG 4581 Z	209/245	380 V/50 Hz	ORE 40.32.6

Split Refrigeration Units Frost Series ;

Hermetic R404A ( Suitable for working with R448A, R449A and R452A. )

(Evaporating Temperature -25 °C, Condensation Temperature +40 °C)

TYPE	WATT Q	HP P	KW TP	C.O.P	COMP. TYPE	M³ V	POWER SUPPLY	EVAP. TYPE	DOCUMENTS
OFST/0145-HZ	1.439	1,50	1,10	1,30	CAJ 2464 Z	10/14	220 V/50 Hz	ORE 30.12.6
OFST/0170-HZ	2.111	2,00	1,58	1,33	TFH 2480 Z	15/24	380 V/50 Hz	ORE 30.21.6
OFST/0270-HZ	2.887	3,00	1,96	1,46	TFH 2511 Z	25/40	380 V/50 Hz	ORE 30.22.6
OFST/0360-HZ	4.218	5,00	2,86	1,48	TAG 2516 Z	41/62	380 V/50 Hz	ORE 30.32.6
OFST/0475-HZ	5.136	7,00	3,45	1,49	TAG 2522 Z	63/90	380 V/50 Hz	ORE 30.42.6
OFST/0575-HZ	5.665	8,00	3,84	1,47	TAG 2525 Z	91/110	380 V/50 Hz	ORE 30.42.6
