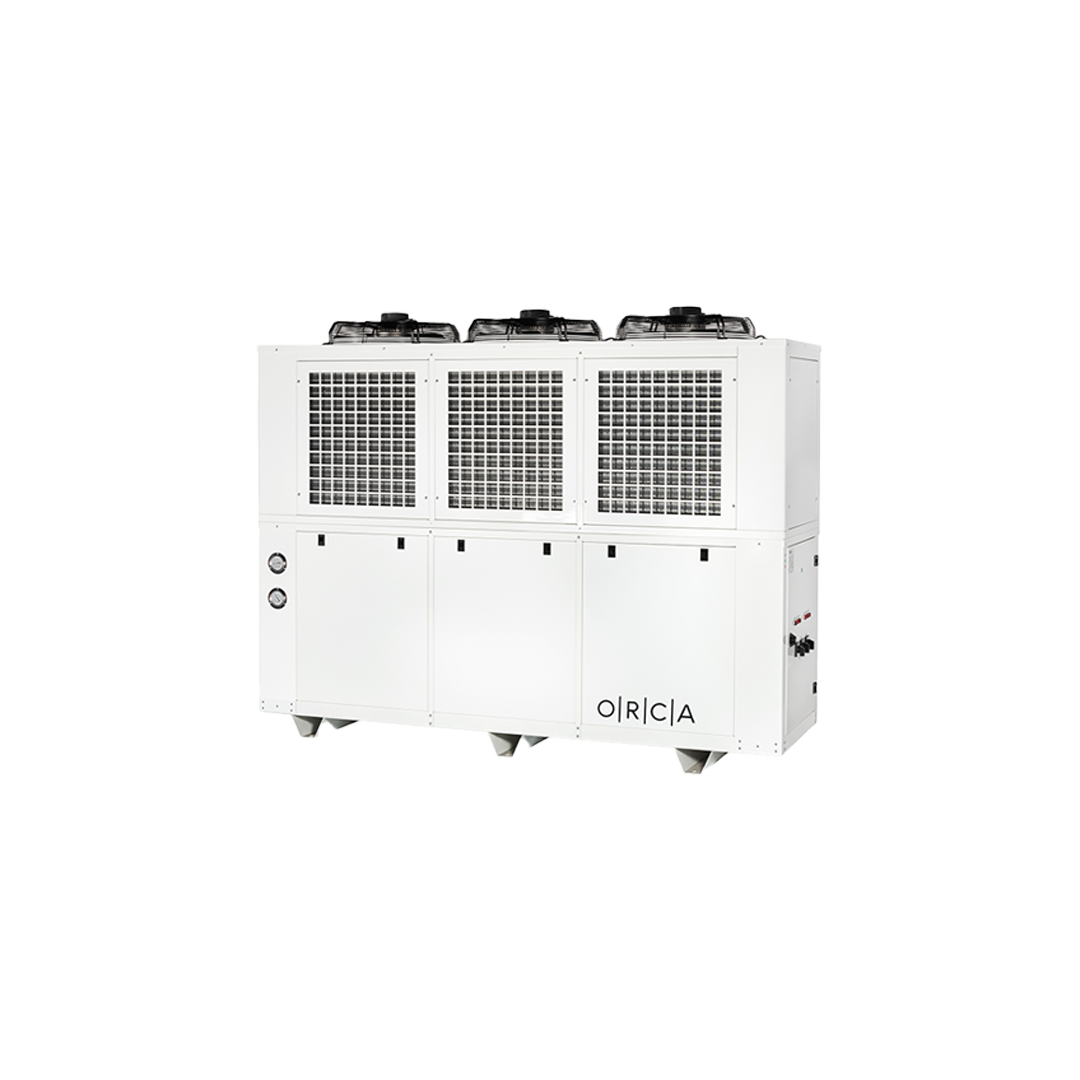

Monoblock Refrigeration Units

Technical Specifications

Monoblock Refrigeration Units ;

Equipments:

* It can differ according to unit model

• Phase protection relay(High/Low)
• Thermal / Magnetic circuit breaker
• Contactor (in three-phase models)
• Copper tube aluminium fin condenser
• Liquid receiver
• Dryer
• Sight glass
• Liquid flow control solenoid
• Service / Maintenance valve (on the liquid line)
• Pressure switch (Low / High)
• Gas charge valve
• Check valve
• Electronic fan speed controller (in frost series)

Monoblock Refrigeration Units Cold Series ;

Hermetic R404A ( Suitable for working with R448A, R449A and R452A. )

(Evaporating Temperature -5 °C, Condensation Temperature +40 °C)

TYPE	WATT Q	HP P	KW TP	C.O.P	COMP. TYPE	M³ V	POWER SUPPLY	DOCUMENTS
OCMV/0140-HZ	1.706	0,75	0,74	2,29	CAJ 9480 Z	09/14	220 V/50 Hz
OCMV/0205-HZ	2.560	1,00+	1,05	2,43	CAJ 9513 Z	15/24	220 V/50 Hz
OCMV/0245-HZ	3.015	1,20	1,20	2,51	CAJ 4517 Z	25/30	220 V/50 Hz
OCMV/0325-HZ	3.984	1,50	1,62	2,45	CAJ 4519 Z	31/41	220 V/50 Hz
OCMV/0385-HZ	4.353	2,00	1,86	2,34	TFH 4524 Z	42/46	380 V/50 Hz
OCMV/0500-HZ	5.574	2,50	2,32	2,40	TFH 4531 Z	47,61	380 V/50 Hz

Monoblock Refrigeration Units Frost Series ;

Hermetic R404A ( Suitable for working with R448A, R449A and R452A. )

(Evaporating Temperature -25 °C, Condensation Temperature +40 °C)

TYPE	WATT Q	HP P	KW TP	C.O.P	COMP. TYPE	M³ V	POWER SUPPLY	DOCUMENTS
OFMV/0145-HZ	1.439	1,50	1,10	1,30	CAJ 2464 Z	10/14	220 V/50 Hz
OFMV/0170-HZ	2.111	2,00	1,58	1,33	TFH 2480 Z	15/24	380 V/50 Hz
OFMV/0270-HZ	2.887	3,00	1,96	1,46	TFH 2511 Z	25/40	380 V/50 Hz
OFMV/0360-HZ	4.218	5,00	2,86	1,48	TAG 2516 Z	41/62	380 V/50 Hz
